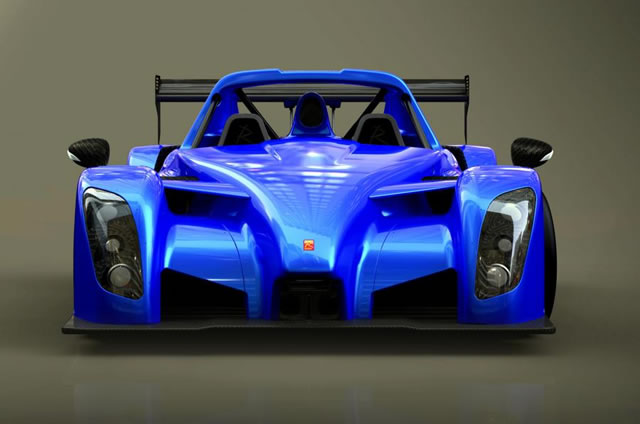

RXC SPYDER OVERVIEW

The RXC Spyder is Radical’s flagship racing car for the gentleman driver.

It offers a refined experience closer to LMP competition than ever before thanks to Radical’s learnings from their multiple Le Mans entries in LMP2 – at a purchase and running cost far below the competition.

Recent enhancements include a new front splitter, diffuser and rear wing. The RXC Spyder enjoys similar speed to the SR8 but allows for a bigger and more generously-appointed cockpit than any previous open Radical and with a greater range of driving aids and benefits than previously available.

RXC Technical data

0-60

2.7 sec

TOP SPEED

180 mph

POWER@FLYWHEEL

650 bhp

WEIGHT

1010 kg

POWER:WEIGHT

644 bhp/tonne

LATERAL FORCE

2.1 g

RXC SPYDER STANDARD FEATURES

Engine

  • Ford EcoBoost V6 3500cc 650bhp, twin-turbocharged and intercooled

  • Latest Life Racing ECU

  • Unparalleled engine warranty – Terms and conditions apply ask for details

TRANSMISSION

  • Bespoke 6-speed transverse Hewland gearbox

  • Formula 1TM ‘style’ paddle-activated gearshift system with auto-blipper

  • Rear-wheel-drive

SUSPENSION

  • Fully adjustable roll bar system, front and rear unequal length top and bottom wishbones, cast uprights, forged centre locked hubs and interchangeable roll bars

  • Bespoke inboard triple adjustable Intrax dampers

TYRES

  • Bespoke slick tyre

  • Bespoke wet tyre

DIMENSIONS

  • Length: 4300 mm

  • Width: 1960 mm

  • Height: 1127 mm

FEATURES

  • Two seater chassis with single seat (option for two seats)

  • High down force, lightweight fibreglass bodywork with optional super light carbon-fibre body upgrade

  • LMP inspired highly aerodynamic CAD design

  • FIA specification front crash box

  • Carbon Composite dashboard featuring a dash mounted brake bias adjuster

  • AIM MXG full colour 7″ customisable digital dash with Wi-fi connectivity

  • Fully adjustable power steering

  • Pit lane speed limiter

  • Adjustable pedal box

  • Adjustable in car engine mapping

  • FIA specification foam filled, 100L fuel cell

  • Radical six-pot calipers, front fully-floating disc brakes 360mm dia. x 35mm, rear 330mm dia. x 35mm

  • Radical centre lock, single-piece cast aluminium wheels 18″ x 10.5″ dia. front and 18″ x 11.5″ dia. rear

  • Full fire extinguisher system

  • Wind deflector

OPTIONS

  • New optional Bosch ABS system & Life racing LMP derived traction control system

  • Independent brake pressure logging

  • Individual damper potentiometers

  • Steering wheel angle sensor

  • HD SmartyCam with integrated GPS
